Solenoid Pinch Valves

Solenoid Pinch Valves

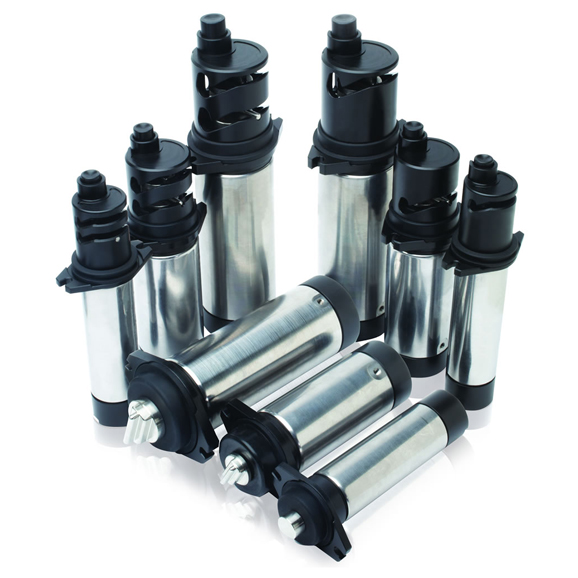

The Acro Versagrip™ solenoid pinch valve product line offers flexibility and affordability from a wide selection of models and configurations.


Find out more

View our brochure for more information

Each model allows you to select your own variety of tube or disposable bag material type using up to an average of 60-Shore A durometer, and up to 15 psi media pressure. Our patented valve design allows for easy tube loading, unloading and securely holding in place during valve actuation. A manual push button override, solenoid controller and optical digital position feedback sensor are also available on all applicable versions.



  • Standard 24VDC x 3A power input
  • Supports tubing sized from 0.063 - 0.375 inch OD (1.6 - 9.5mm)
  • Supports up to 60 Shore A average durometer tubing and 15 psi media pressure
  • Panel mount ready with seals that prevent liquid ingress
  • Snap-In tube loading slot with manual override button
  • Available in single tube N/O, N/C or dual tube toggling N/O-N/C formats
  • Available as cassette only mounting format
  • 18 month warranty or 3 million MTBF cycles*
  • ANSI/AAMI ES60601-1:2005+A2 (R2012)+A1 certified
  • CAN/CSA-22.2 No. 60601-1:14 certified
  • EN61326-1: 2013 certified
  • FCC Part 15 Subpart B compliant

Operational Requirements:

  • 24VDC x 3A power supply
  • Use of solenoid controller or pulse-width modulation methods for power and heat management

Accessories and Customization:

  • Model VDB solenoid controller
  • Optical digital position state sensor
  • Custom manifolds for multi-valve mounting
  • Need customization? Let us know and we can discuss modifications

*MTBF based on 50% duty cycle testing carried out at 20 degrees C ambient using 60-Shore A tubing. Duty cycle is defined as On Time/(On Time + Off Time).
